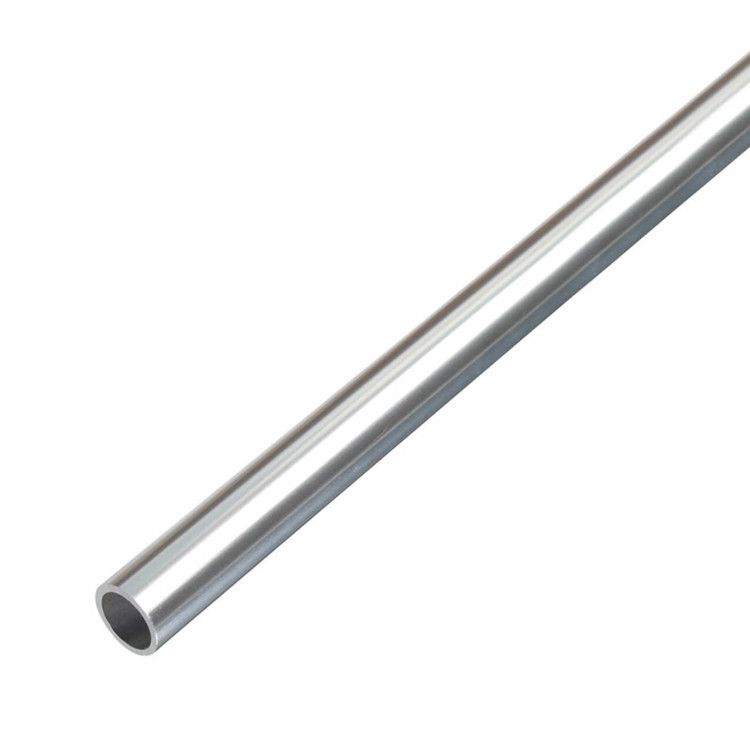

Hastelloy X Pipe UNS N06002 NiCr22FeMo Hastelloy C276 Seamless Pipe
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Screw Metal |
| Certification | ISO9001 |
| Model Number | M290-50A, M350-50A |
| Minimum Order Quantity | 1-18 Tons |
| Price | $1,300.00/Tons |
| Packaging Details | Industry seaworthy wooden package or as customer's requirements |
| Supply Ability | 5000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Hastelloy Alloy Hastelloy X Tube Nickel Base Alloy UNS N06002 NiCr22FeMo Pipe Price | SURFACE | Anodized,Brushed,Mill Finished,Polished |
|---|---|---|---|
| Series | Monel/Inconel/Incoloy/Hastelloy/Stainless Steel | Technique | Hot Rolled, Hot Forged, Cold Drawn |
| Shape | Sheet,Pipe,Bar,Coil,Strip | Standard | ASTM AISI JIS DIN GB |
| Edge | Mill Edge Slit Edge | Grade | Hastelloy |
| Advantage | Strong Corrosion-proof | Colour | Bright,shinny |
| Usage | Ship Building | ||
| Highlight | hastelloy x pipe UNS N06002,hastelloy x pipe UNS NiCr22FeMo,hastelloy c276 seamless pipe |
||
Product Description
hastelloy alloy Hastelloy X tube nickel base alloy UNS N06002 NiCr22FeMo pipe price
Chemical composition, %
|
Ni
|
Bal.
|
Cr
|
20.5-23
|
Fe
|
17-20
|
Mo
|
8-10
|
|
Co
|
0.5-2.5
|
C
|
0.05-0.15
|
Mn
|
≤1
|
Si
|
≤1
|
|
S
|
≤0.015
|
Cu
|
≤0.5
|
Al
|
≤0.15
|
Ti
|
≤0.5
|
|
W
|
0.2-1
|
|
|
|
|
|
|
Hastelloy X Physical properties
|
density
g/cm3
|
Melting point
℃
|
Thermal conductivity
λ/(W/m•℃)
|
Specific heat capacity
J/kg•℃
|
Elastic Modulus
GPa
|
Resistivity
μΩ•m
|
Linear expansion coefficient
a/10-6℃-1
|
|
8.28
|
1295-1381
|
13.38(100℃)
|
372.6
|
199
|
1.18
|
12.1(20~100℃)
|
Hastelloy X Mechanical properties(Detect the minimum value of mechanical properties at 20℃)
|
Heat treatment method
|
Tensile strength
σb/MPa
|
Yield Strength
σp0.2/MPa
|
Elongation
σ5 /%
|
Brinell hardness
HBS
|
|
Solution treatment
|
690
|
275
|
30
|
≥241
|
Supply form and specification
|
Alloy grade
|
Form
|
Specification
|
|
|
HastelloyX
|
Wire
|
Diameter=0.025mm~8mm
|
|
|
HastelloyX
|
Flat wire
|
Width=0.4~40mm
|
Thick=0.03~2.9mm
|
|
HastelloyX
|
Strip
|
width=8~250mm
|
ThickT=0.1~3.0mm
|
|
HastelloyX
|
Foil
|
width=6~120mm
|
Thick=0.003~0.1mm
|
|
HastelloyX
|
Bar
|
Diameter=8~100mm
|
Long=50~1000
|
The superalloy Hastelloy X is a nickel-chromium-molybdenum alloy with cobalt and tungsten added. HastelloyX alloy has excellent oxidation resistance at high temperatures up to 1200°C and can also be used in neutral and reducing atmospheres. At the same time, HastelloyX alloy can resist carbonization and nitriding atmosphere. (Similar grades: GH3536 GH536 (China), NC22FeD (France), NiCr22FeMo (Germany), Nimonic PE13 (UK)) Characteristics of HastelloyX alloy ●Excellent oxidation resistance up to 1200°C ●Good high temperature strength ●Good formability and weldability ●Good resistance to stress corrosion cracking
Faq
Q: Are you a factory or a trader?
A: Wuxi Screw Metal Products Co., Ltd. was established in 2001. It is a leading domestic steel industry and a leading high-end manufacturing supporting service company. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
A: We have many professionals, technical personnel, more competitive prices and best after-dales service than other steel companies.
Q: How to get samples?
A5: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q: How long does it take to get the product if I place an order?
A: With the process of your requirements, we will pack and deliver in 3-7 days. If it is by sea shipment, it will take 15-45 daysdepending on different locations.
Q: How about samples?
A: free
Q: Minimum order quantity?
A: MOQ is 1 tons.
Q: What kind of terms of payment?
A: T/T, L/C, Western Union,PayPal are available.
Q: Can you do customization & reproduction if I provide a photo?
A: Yes.
Q. How do you control the quality?
A: Factory test certification is provided with the shipment, and third-party inspection can be provided. We have also obtained ISO, SGS, and certification.
Q: What are the main products of your company?
A: Our main products are carbon steel coils/plates, galvanized steel coils/plates, stainless steel coils/plates, copper plates, copper pipes, steel wires, round/square pipes, bars, channel steel, etc.
Application field of HastelloyX alloy Because of its corrosion resistance in various atmospheres at high temperatures and excellent high-temperature strength, HastelloyX has been widely used in various high-temperature environments. Typical application areas: ●Industrial and aviation steam turbines (combustion chamber, rectifier, structural cover) ●Industrial furnace parts, support rollers, grids, ribbons and radiant tubes ●Spiral tube in petrochemical furnace ●High temperature gas cooling nuclear reactor
About us
Wuxi Screw Metal Products Co., Ltd. is a professional manufacturer with more than 20 years of experience in manufacturing stainless steel and carbon steel from 2001. Our location is in Wuxi - the largest stainless-steel processing center in China. Our company has its own factory, it provides a one-touch service for cutting, forming and surface processing of stainless steel products. and it's high-end professional processing equipments from domestic and international such as Italian Nova stainless steel leveling production line,Taiwan Weitai stainless steel transverse shear line,Taiwan Weitai stainless steel longitudinal shear line,large stainless steel cold and hot rolling leveling machine/slitting machine; And other large-scale CNC processing equipment. Since its establishment, the company has been expanding in scale with stable and sustainable operation with integrated trade, processing, warehousing and distribution capabilities. Our company is the first-level agent designated by TISCO,ZPSS,ESS(Eastern special steel),Bao steel,etc so our products is of quality,lead time is flexible,cost effectiveness, it is very competitive to best maximize customers benefits. Mainly avalable material and grades include: 200series,304,304L,309,309L,310,310S,316,316L,316Ti,321,2205,2507,440,440c,904,904L with sample stock available throughout the year. We would like to express our heartfelt thanks to these customers who care and support our company. We hope to establish long-term cooperation relationship with you.
